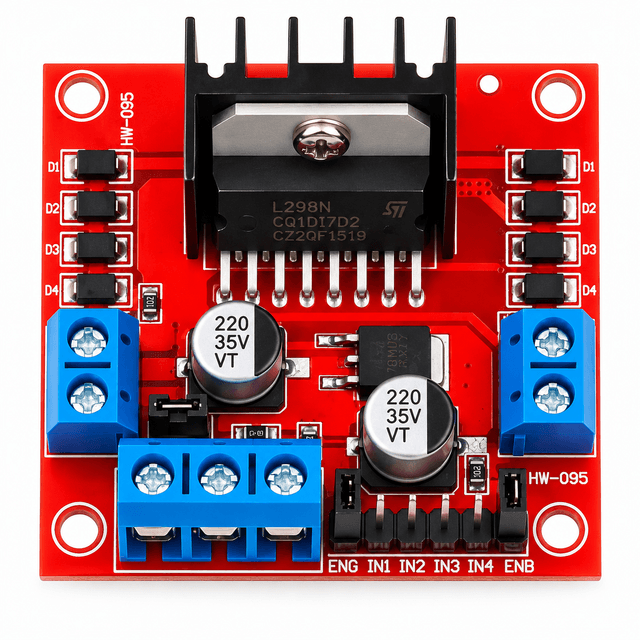

L298N Dual H-Bridge Driver

SKU: SKU-MT-05

Products will go live soonPricing & checkout will be enabled on launch. Stay tuned!

Availability:Genuine Component • Sourced & Dispatched within 24-48 Hours

Check Delivery & Shipping Charges

Bulk Order & Institutional Procurement

Need bulk quantities for lab setup or institution? Contact us at awielabs@gmail.com

Overview

Dual H-bridge motor driver module for controlling two DC motors or one bipolar stepper motor. Commonly used with Arduino, ESP32 and robotics platforms.

Key Highlights

Dual full H-bridge driver capable of up to 2A peak per channel
Independent bidirectional speed and direction control for 2 DC motors
Onboard 78M05 5V linear voltage regulator with jumper enable
Heavy-duty aluminum heat sink and screw terminal blocks
Direct PWM input pins for motor speed acceleration control

Technical Specifications

Driver ICL298N

Driver TypeDual H-Bridge Driver

Motor Channels2 DC Motors or 1 Bipolar Stepper

Motor Supply (Vs)Typically up to 35V DC

Logic Supply (Vss)5V DC (Onboard regulator enabled when Vs > 7V)

Peak Current2A per channel

Control SignalsDigital inputs (IN1-IN4) + PWM Enable pins

ApplicationsRobot cars, DC motors and robotics
